OHM-8000M(B) TFT LCD 8 inch Industrial Monitor

touch screen 8 inch
monitores industriales
open frame lcd display
8 inch open frame monitor
open frame screen
open frame touch display
industrial touch screen monitor

OHM-8000M(B) TFT LCD 8 inch Industrial Monitor

For our 8 inch metal case monitor, standard with normal panel, but you can also choose the IPS panel optional.

  • Item No :

    OHM-8000M(B)
  • Resolution :

    1024x768
  • Viewing angle :

    160°/160°
  • Brightness :

    250cd/m2 (300-350cd/m2 optional )

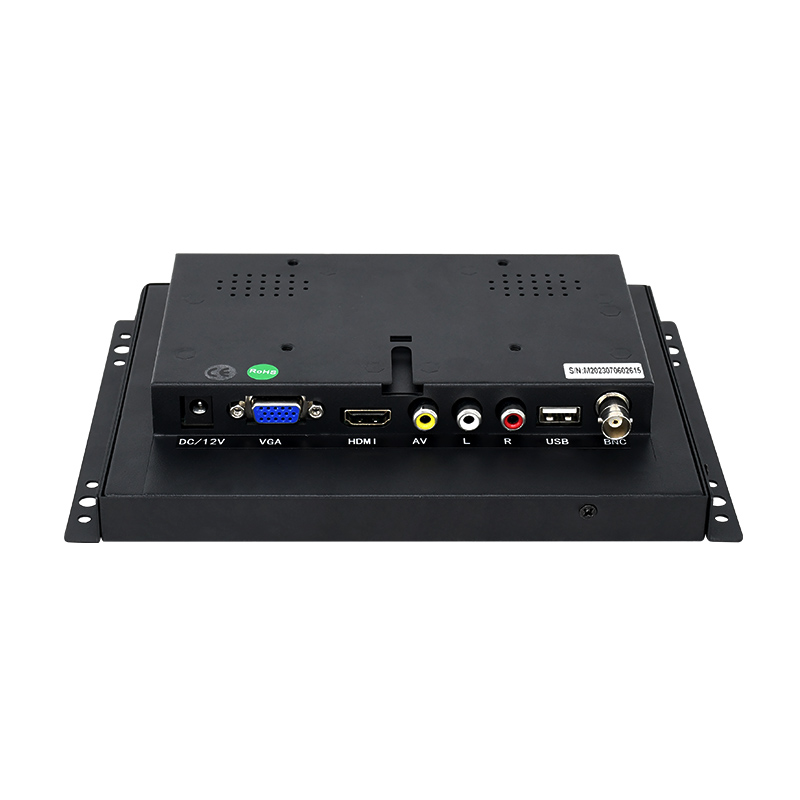

  • Interface :

    HDMI/VGA/AV/BNC/USB
  • Working Temperature :

    -10℃~ 60℃
  • Product Details
  • Detail images
  • Video
  • Download

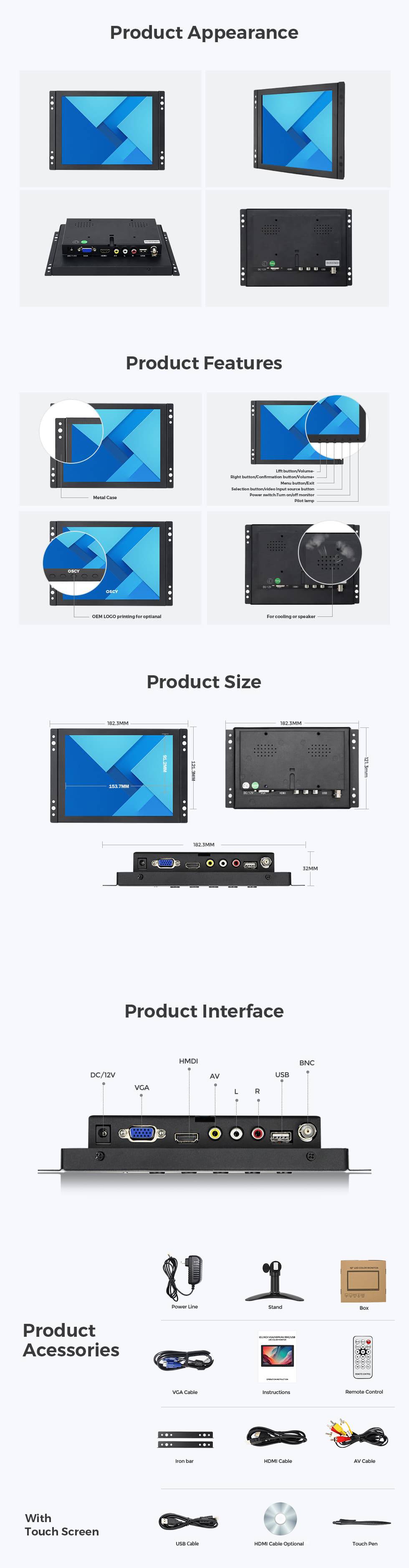

Product Features

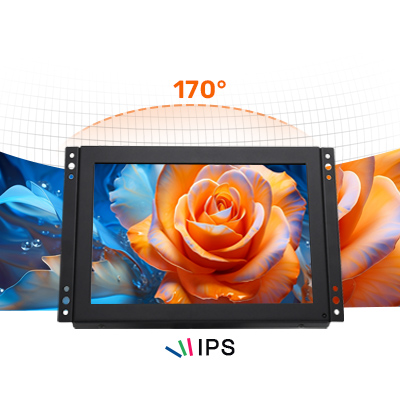

〖IPS Panel Optional〗

For our 8 inch metal case monitor, standard with normal panel, but you can also choose the IPS panel optional, in this case, not only can with full viewing angle 178°/178°, but also you can enjoy the high-quality color representation and rich contrast.

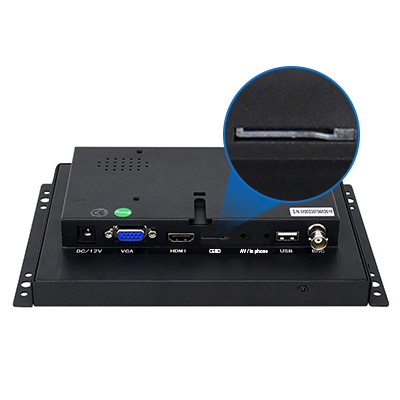

〖SD Card Slot Optional

Our 8 inch industrial monitor can be customized with SD card slot, which allowing you to easily access and display content directly from your SD card.

〖9V-32V Power Input〗

We have our own SMT workshop, which giving us the ability to integrate unique features into our monitor designs. Our 8 inch lcd monitor boasts a wide range of power inputs, from 9V-32V, making it versatile for a multitude of customer needs.

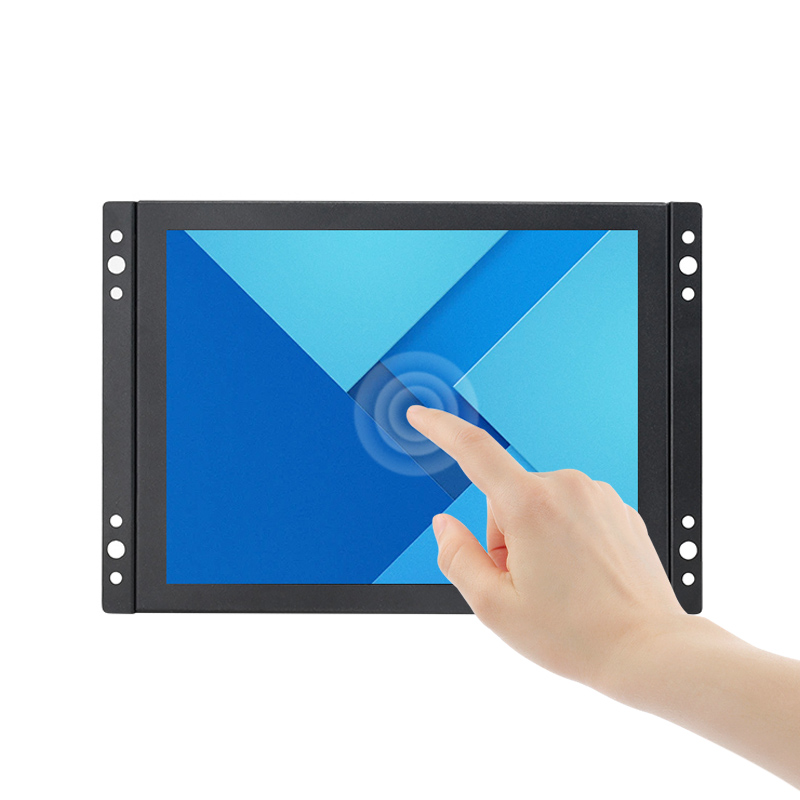

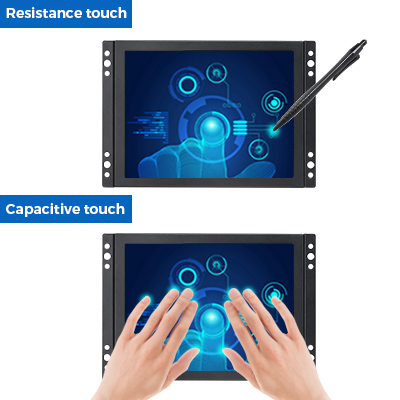

〖4 wire resistive or capacitive touch optional〗

Our monitor 8 inch offers the flexibility of two touch screen options to suit your specific needs. You can choose between a 4 wire resistive touch screen or a 10 point pcap touch screen, allowing you to customize the monitor to your preferences and requirements.



Parameters



OHM-8000M(B) TFT LCD 8 inch Industrial Monitor

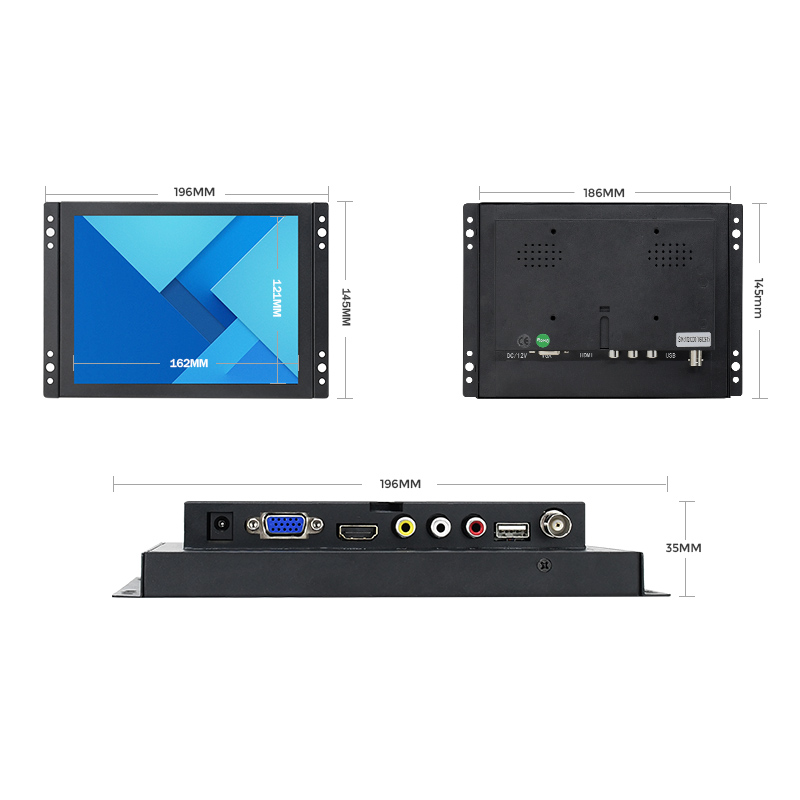

Size 8 inch
Panel 4:3
Resolution 1024x768
Brightness 250cd/m2 (300-350cd/m2 optional )
Panel
Normal panel(IPS panel optional)
Touch Screen
4 wire resistive or capacitive touch optional *Model:OTM-8000M(B)*
Contrast ratio 500:1
Color System PAL  NTSC
Viewing Angle 160°/160°

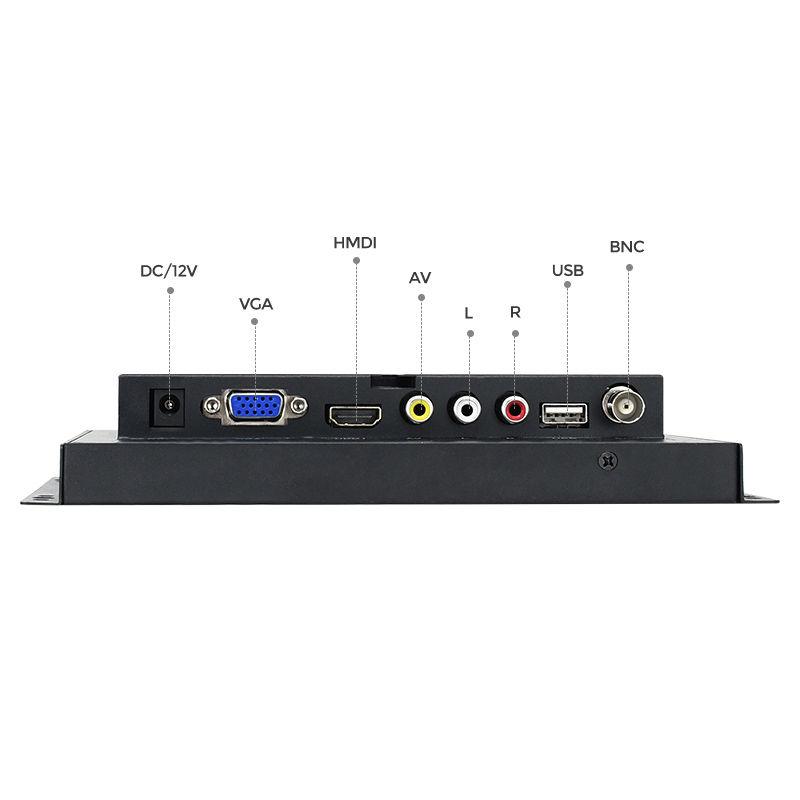

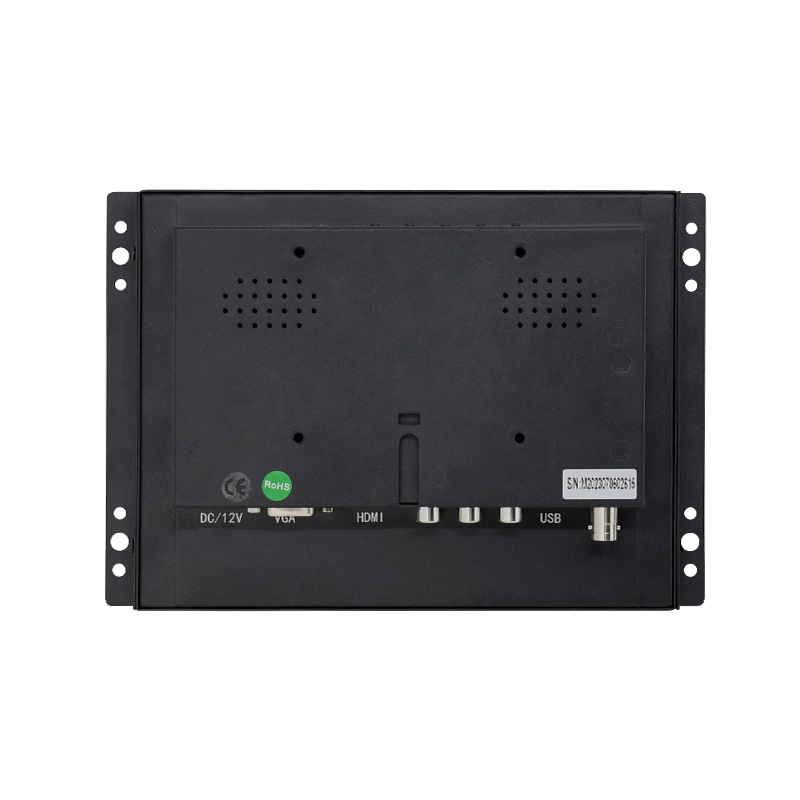

Monitor interface HDMI/VGA/AV/BNC/USB
Backlight LED
Working Temperature -10℃~ 60℃
Speaker Built in
Language 11 languages
Power DC12V   1-2A
VESA mount 75*75mm

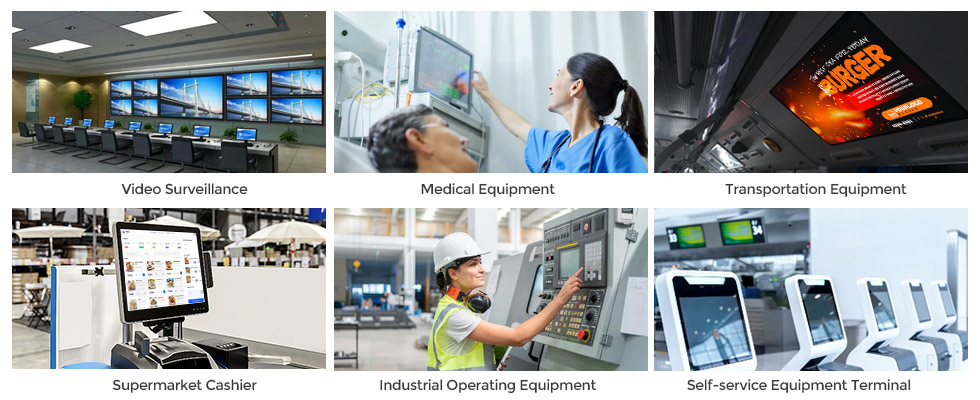

Application Scenarios



Our 8 inch lcd monitor metal case can be widely applied for various purposes such as video surveillance, medical equipment, transportation equipment, supermarket cashier, industrial operating equipment, self-service equipment terminal and many other functions.
