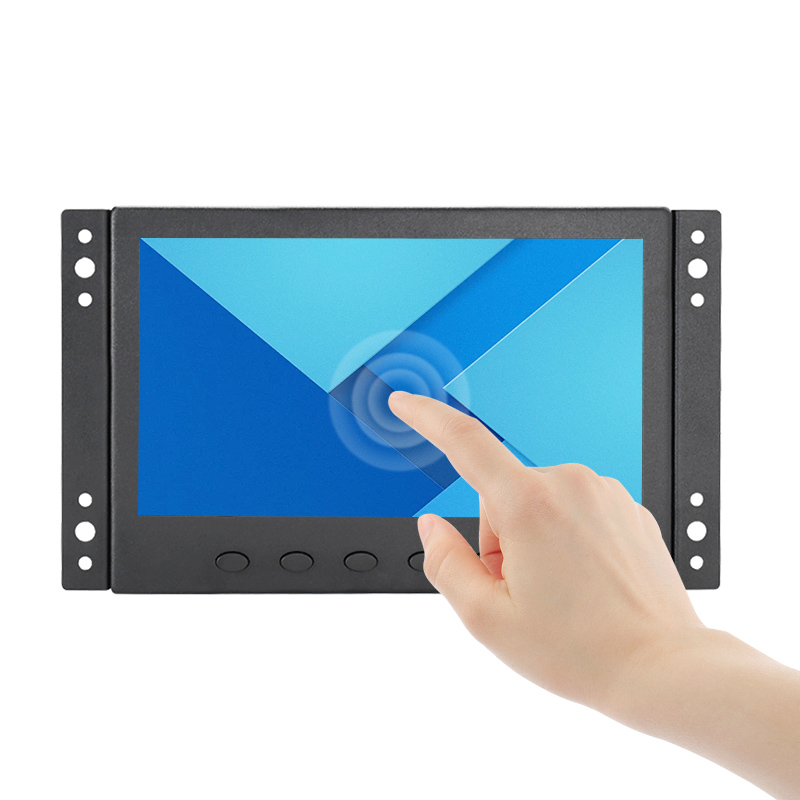

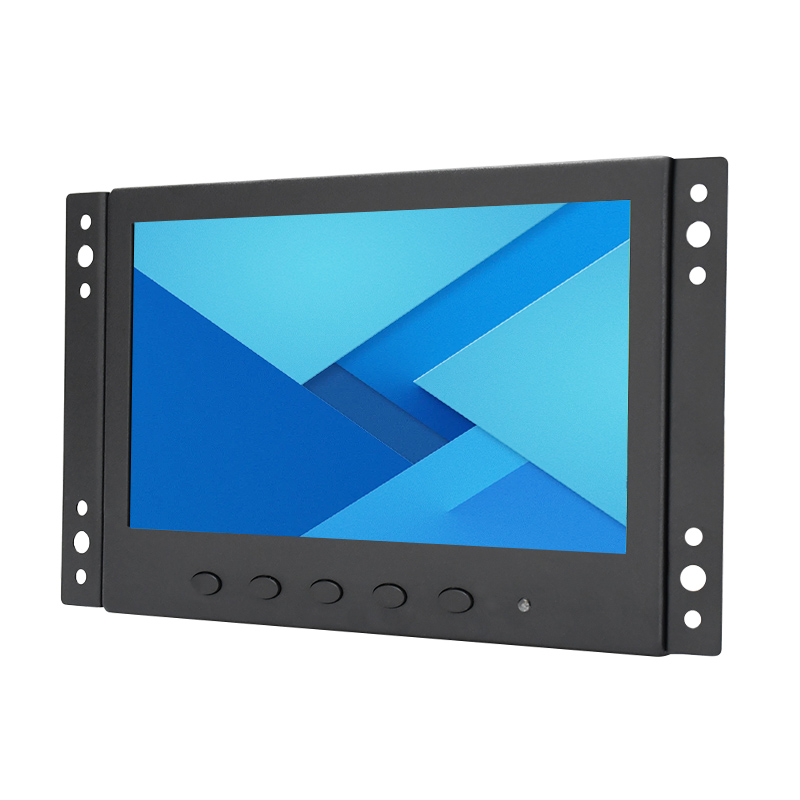

OHM-7000M(A) 7 inch Metal Case Monitor

Our 7 inch metal case monitor with 1024*600 resolution, and with IPS panel, can make with 500cd/m2 to 600cd/m2 high brightness. With full viewing angle, you can enjoy the good images effect.

  • Item No :

    OHM-7000M(A)
  • Resolution :

    1024x600
  • Viewing angle :

    178°/178°
  • Brightness :

    500-600cd/m2
  • Interface :

    HDMI/VGA/AV/BNC/USB
  • Working Temperature :

    -10℃~ 60℃
  • Product Details
  • Detail images
  • Video
  • Download





Product Features



〖500cd/m2 to 600cd/m2 high brightness〗

Our 7 inch metal case monitor with 1024*600 resolution, and with IPS panel, can make with 500cd/m2 to 600cd/m2 high brightness. With full viewing angle, you can enjoy the good images effect.

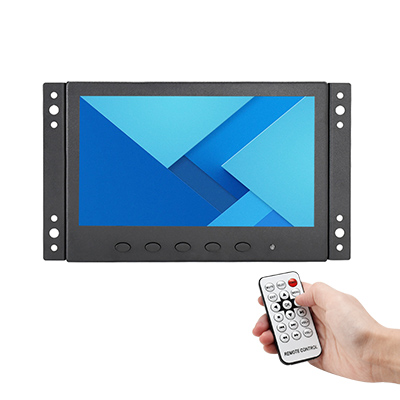

〖Remote controller easy to operate〗

Our 7 inch embedded monitor is designed with convenience in mind, providing you with an IR remote controller and a manual for easy operation.

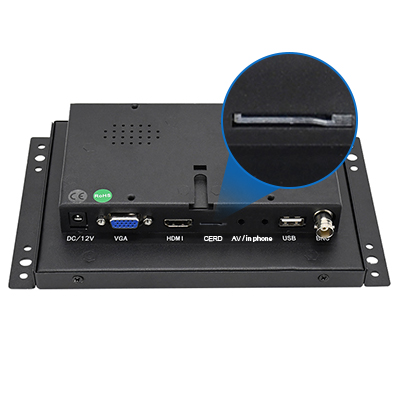

〖SD Card Reader Optional〗

Our 7 inch industrial monitor with an SD card slot customized offers seamless display access to your videos, movies or musics stored on an SD card, allowing for quick and easy viewing.

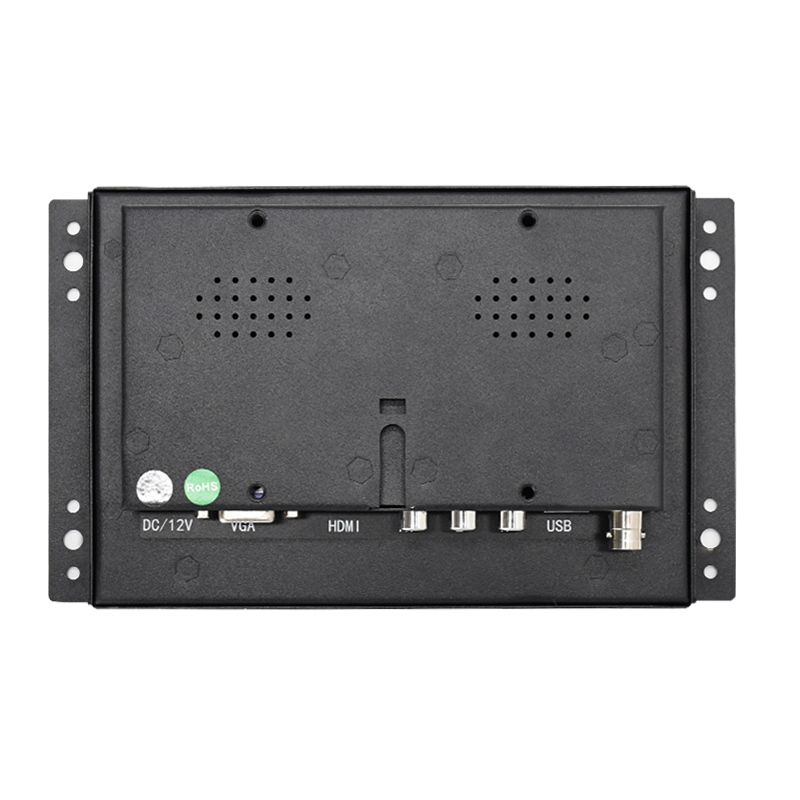

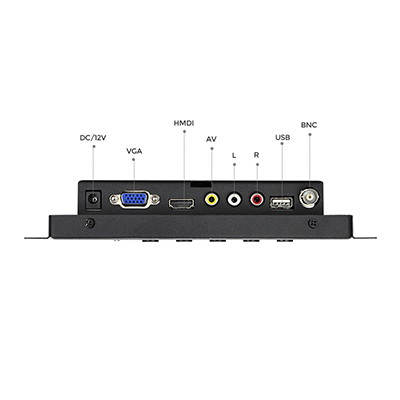

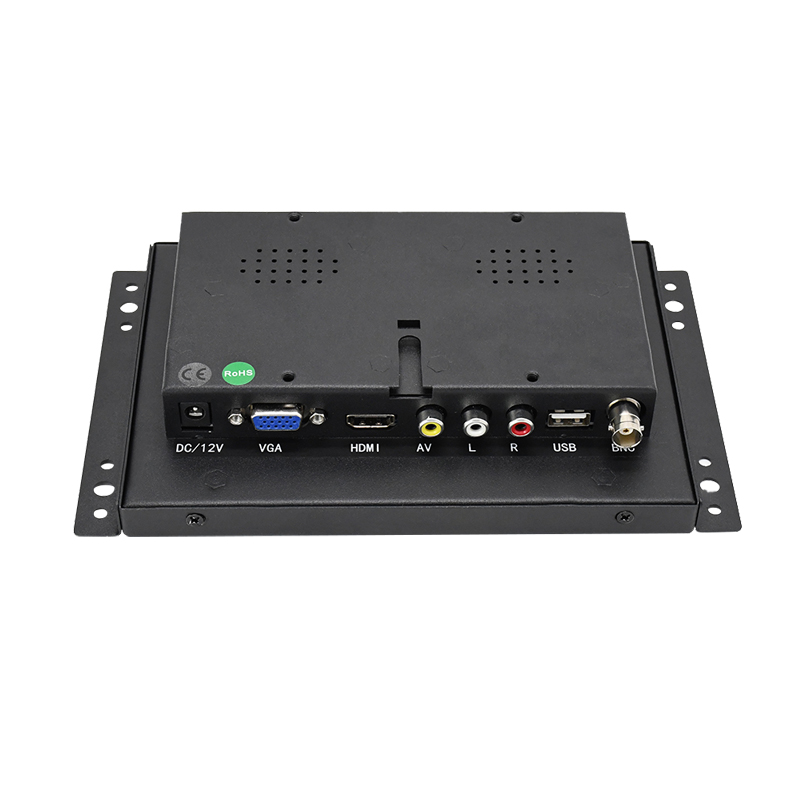

〖HDMI, VGA, BNC, USB, and AV port Multi Interfaces〗

Our 7 inch open frame monitor supports a multitude of interfaces, including HDMI, VGA, BNC, USB, and AV port. Compatible with Raspberry Pi, Car DVD, VCD, cameras, satellite receivers, and many other video devices.

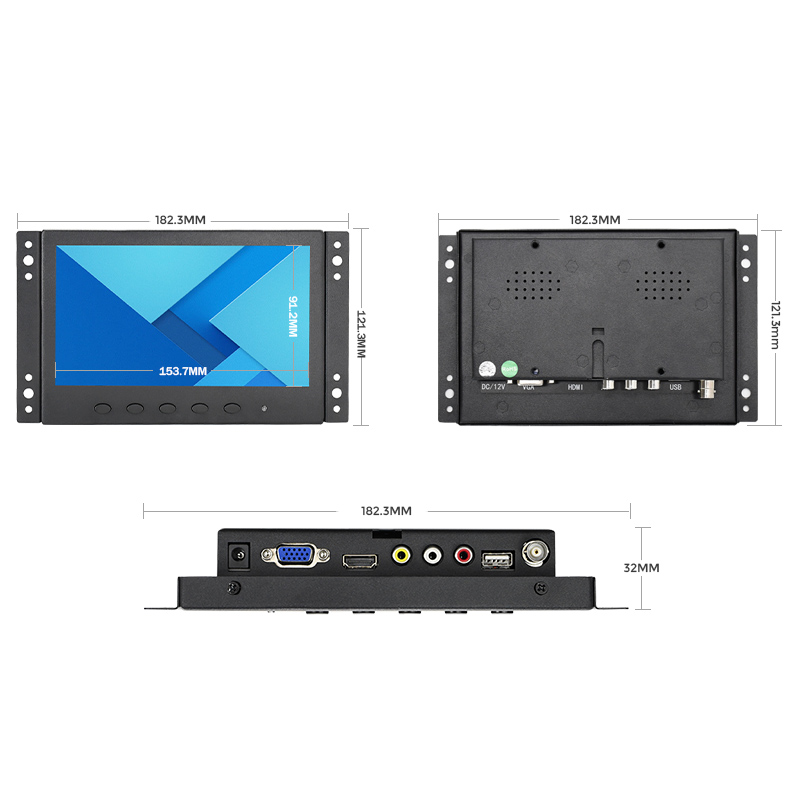

Parameters



OHM-7000M(A) 7 inch Metal Case Monitor
Size 7 inch
Panel 16:9 Wide screen
Resolution 1024x600
Brightness 500-600cd/m2
Panel
IPS Panel
Touch Screen
4 wire resistive or capacitive touch optional *Model:OTM-OHM-7000M(A)*
Contrast ratio 500:1
Color System PAL  NTSC
Viewing Angle 178°/178°
Monitor interface HDMI/VGA/AV/BNC/USB
Backlight LED
Working Temperature -10℃~ 60℃
Speaker Built in
Language 11 languages
Power DC12V   1-2A
VESA mount 75*75mm



Application Scenarios



Our 7 inch lcd monitor metal case can be widely applied for various purposes such as video surveillance, medical equipment, transportation equipment, supermarket cashier, industrial operating equipment, self-service equipment terminal and many other functions.
