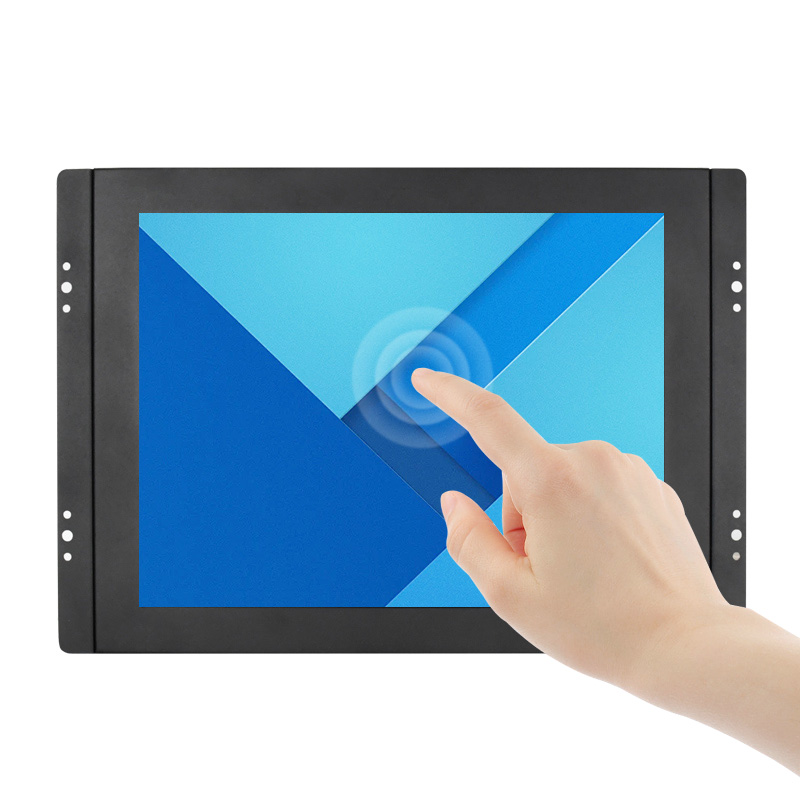

Our lcd 12.1 inch resistive touch monitor wall mounted standard with HD 1024x768 high resolution, a wide viewing angle of 160 degrees, with a 4:3 aspect ratio and a contrast ratio of 500:1.
Item No :
OHM-1210A(M)Resolution :
1024x768Viewing angle :
160°/160°Brightness :
250-300cd/m2Interface :
HDMI/VGA/AV/BNC/USB readerWorking Temperature :
-10℃~ 60℃
Product Features
|

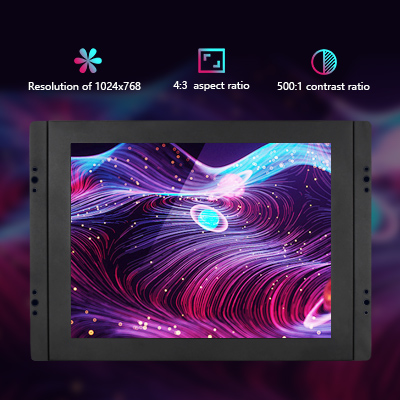

〖HD 1024x768 Resolution〗 Our lcd 12.1 inch resistive touch monitor wall mounted standard with HD 1024x768 high resolution, a wide viewing angle of 160 degrees, with a 4:3 aspect ratio and a contrast ratio of 500:1. |
 |
 |

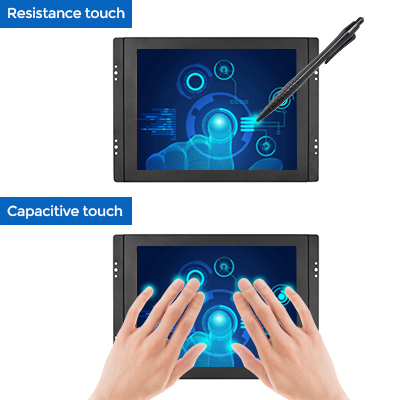

〖Monitor 10 Points Capacitive Touch Screen Monitor〗 Our 12 inch industrial lcd monitor can also can make touch screen optional, standard with 4 wire resistive touch, but also can make 10 points capacitive touch screen, not only can touch by pen, but also can touch by hand.
|
|

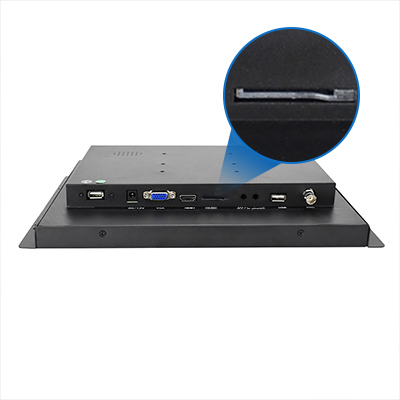

〖SD Card Reader Optional〗 Our 12 inch open frame capacitive touch screen lcd monitors can be customized with SD card slot, which allowing you to easily access and display content directly from your SD card. |
 |
 |

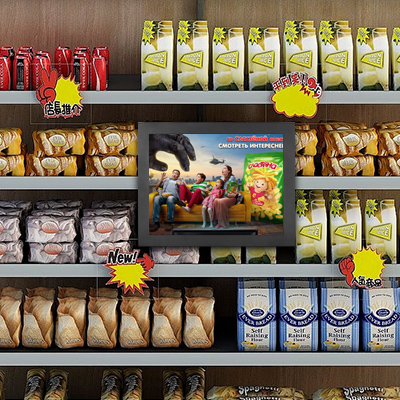

〖Digital Signage〗 With the 75x75mm Vesa mount, you can install the 12”monitor on the wall or in the lifts, which using for the Digital Signage purposes. |

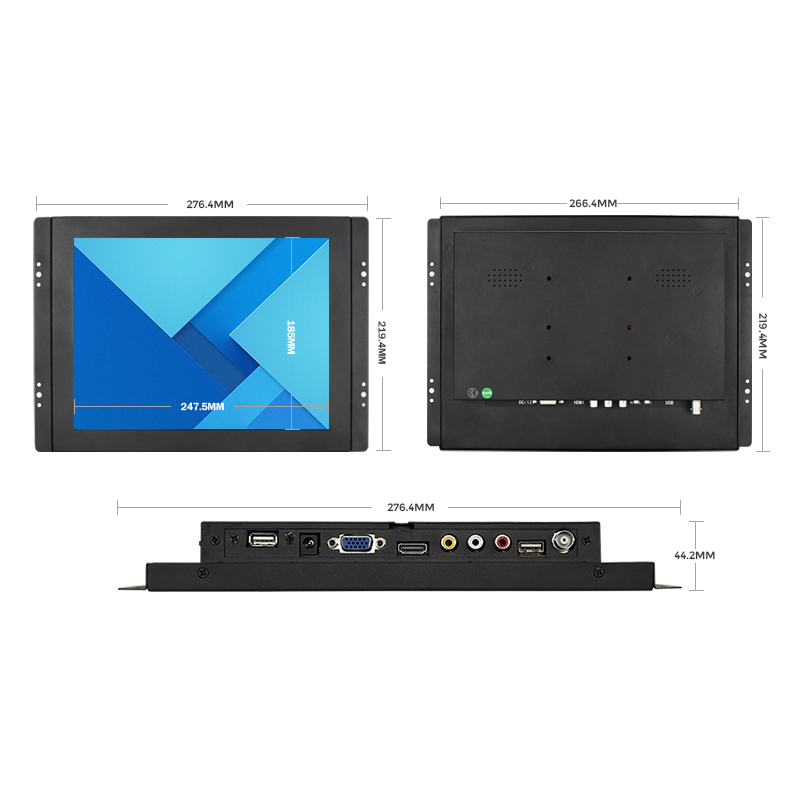

Parameters
| OHM-1210A(M) 12 inch Industrial Display Capacitive Touch Monitor | |
| Size | 12 inch |
| Ratio | 4:3 |
| Resolution | 1024x768 |
| Brightness | 250-300cd/m2 |
| Touch Screen | 4 wire resistive or capacitive touch optional*Model:OTM-1210A(M)* |
| Contrast ratio | 500:1 |
| Color System | PAL NTSC |
| Viewing Angle | 160°/160° |

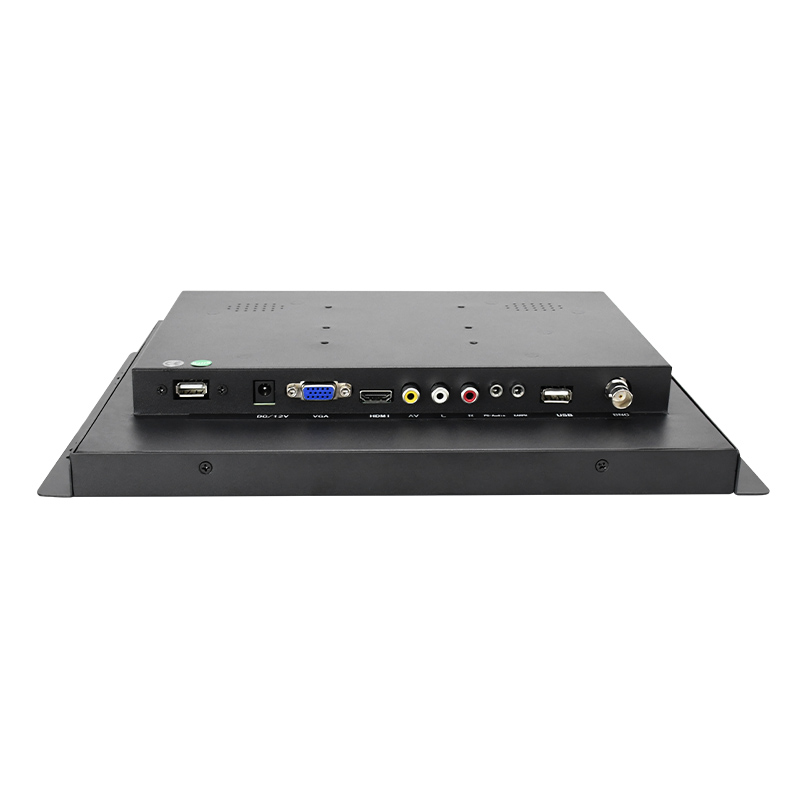

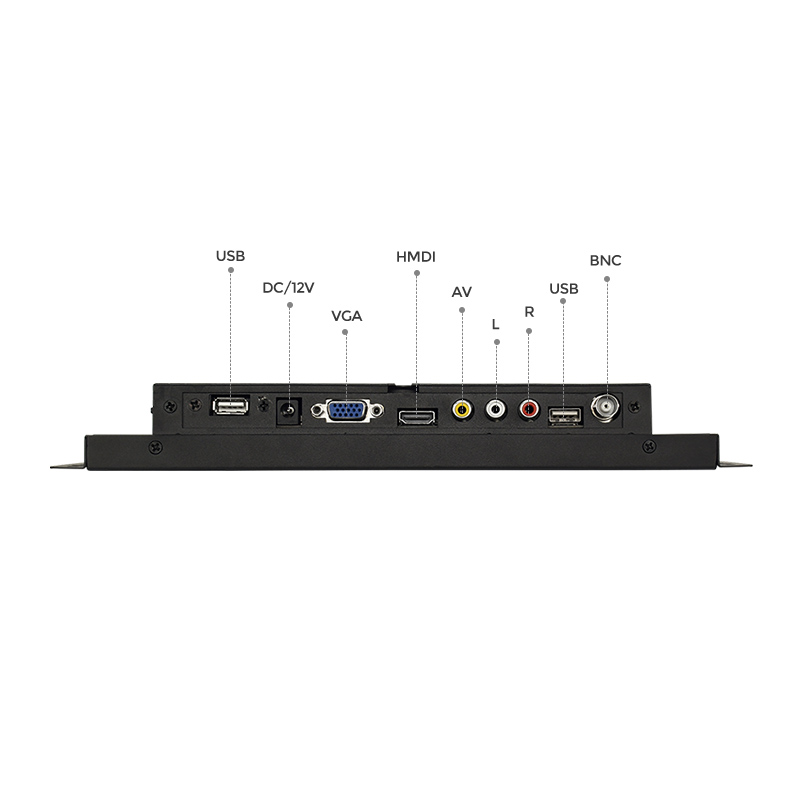

| Monitor interface | HDMI/VGA/AV/BNC/USB reader |
| Backlight | LED |
| Working Temperature | -10℃~ 60℃ |
| Speaker | Built in |
| Language | 11 languages |
| Power | DC12V 1-2A |

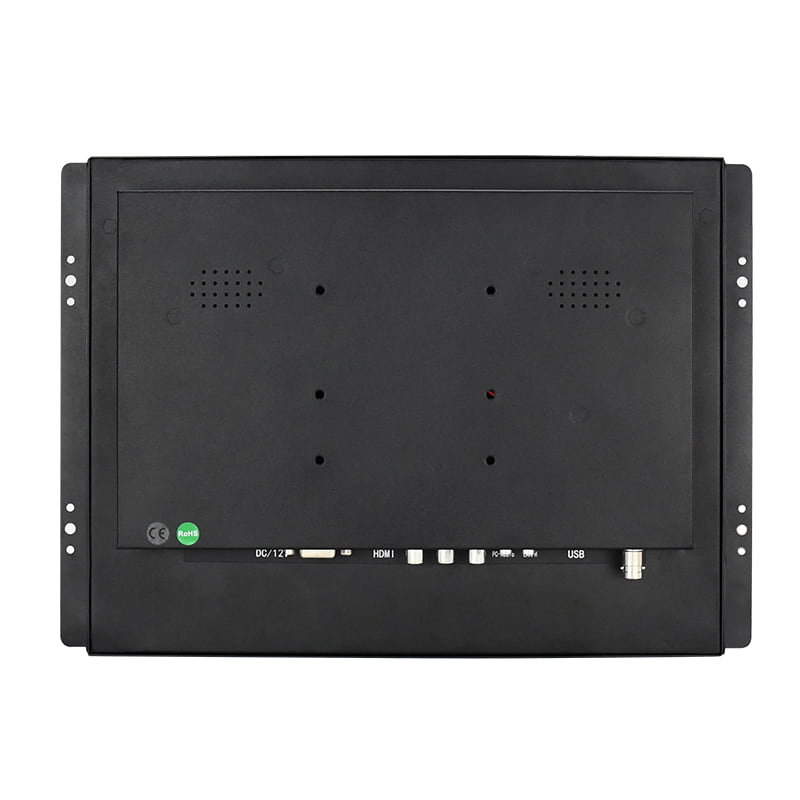

| VESA mount | 75*75mm |

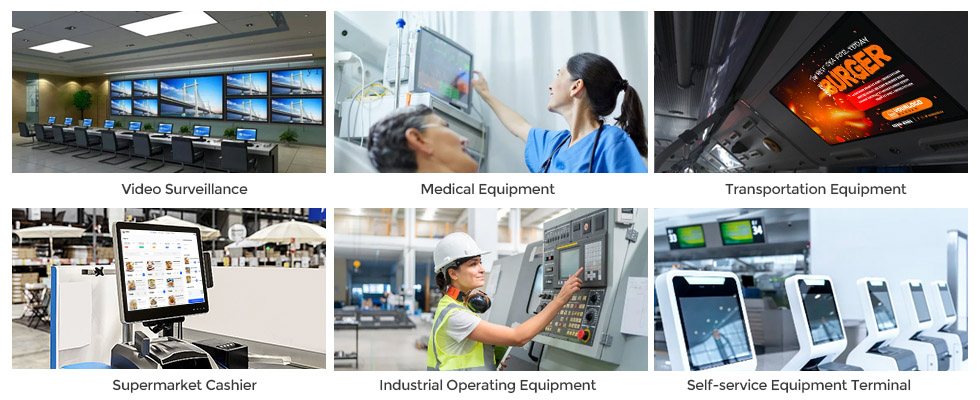

Application Scenarios
With the 75x75mm Vesa mount, you can install the 12”monitor on the wall or in the lifts, which using for the Digital Signage purposes.
